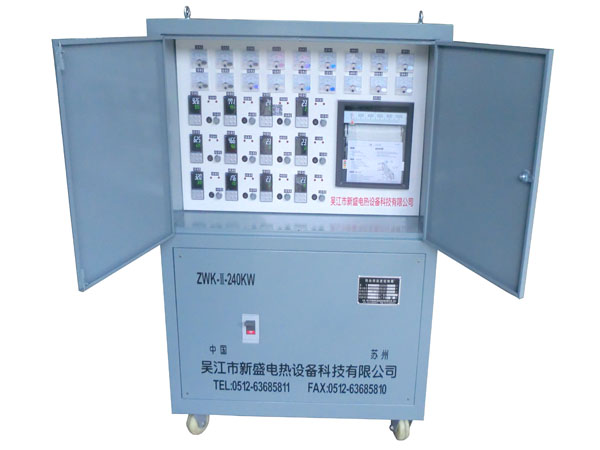

ZWK/WCK-11-240KW cabinet intelligent pressure regulating temperature control box
On-site heat treatment in large-scale installation projects, due to very harsh environmental conditions, and often lack of maintenance technology and accessories, according to this characteristic, we design and produce a versatile, high-performance, high-reliability ZWK temperature control box. ZWK adopts international advanced Inlet temperature program control instrument, with program given function and adaptive control function, can be set and run according to the process temperature curve, the temperature is automatically recorded, can not only ensure product quality, but also extend the heater life. The machine can be with each A kind of heater matching, used for pre-heating and post-weld heat treatment. Output voltage 220V, (0-220V) adjustable voltage Features: 1, three-button PXR5 series of intelligent microcomputer operating temperature controller 2, self-adjusting PID and fuzzy operation control accuracy of ± 1 °C 3, 8 slopes per point / set temperature, insulation, cooling 4, over-temperature, low temperature alarm indication intuitive and reliable 5, SCR output volume is small, weighing only 240 kg 6, adapt to high altitude installation, maintenance, preheating and hydrogen elimination performance: Rated voltage 380V (three-phase four-wire) Rated power 240KW, 12 temperature control points, 12 recording points, maximum temperature 1000°C Equipped with automatic temperature recorder can print process temperature curve in real time Output voltage 0-220V AC Adjustable voltage Can also output 220V AC voltage according to customer demand The output power of the equipment is 30KW, 60KW, 90KW, 120KW, 180KW, 240KW, 360KW      Model Description Hspace=0      model  Rated output power (kw)  Temperature control point  Record point   ZWK/WCK-30-0101  30  1  1   ZWK/WCK-60-0306  60 3 6 ZWK/WCK-90-0306  90 3 6 ZWK/WCK-120-0612  120 6 12 ZWK/WCK-180-0612  180 6 12 ZWK/WCK-240-0612  240 6 12 ZWK/WCK-360-1212  360 12 12   The complete metal component heat treatment equipment consists of three parts, namely ceramic electric heater, temperature control box and auxiliary materials. 1. Ceramic electric heater: The heating element is the source of heat when the workpiece is heated. Our company provides you with a variety of models and specifications, they have their own characteristics, performance is not the same. Such as LCD track heaters, SCD-type rope heaters, NJ-type heat frame heaters, etc., generally require the user to choose according to the shape of the heated workpiece, thickness and the desired temperature value. 2. Temperature control box: It is matched with the ceramic electric heater to provide power for the ceramic electric heater and control its working status to achieve the purpose of temperature control. The temperature control box is equipped with a temperature controller to control and measure the temperature of the workpiece. The configured temperature recorder is used to record the temperature curve of the workpiece in real time so that the user can archive the temperature. At present, our company provides users with various models of temperature control boxes, such as ZWK, WCK, RWK series of intelligent temperature program control box, DWK, TCS series computer temperature control box, LWK series temperature control box, etc. The user needs to select the ideal and practical temperature control box according to the heating range, heating process requirements and site requirements. 3. Auxiliary material: mainly KJ-type quick-connected wire (connecting wire between the temperature control box and heater, also used for 36V, 55V, 110V and other heaters in series, and equipped with quick-connect plug), thermocouple (temperature sensor , Used to measure the temperature of the heated workpiece), compensation wire (connection line between the thermocouple and the temperature control box), high temperature insulation cotton aluminosilicate (to prevent heat dissipation). Use cautions:    1. The heated workpiece must have a reliable ground.    2, the heater does not allow overlap.    3、The thermocouple should be attached to the workpiece reliably. Note:    1. The width of the heater should be 8-12 times the wall thickness of the heated object.    2, according to the needs of users can supply complete sets of lead cables, thermocouples, insulation materials and special temperature control cabinets and capacitive soldering coupler.    3, power error is ± 3%, shape tolerance is ± 2%.    4, special specifications can be customized.
